complexType EMDCouponType

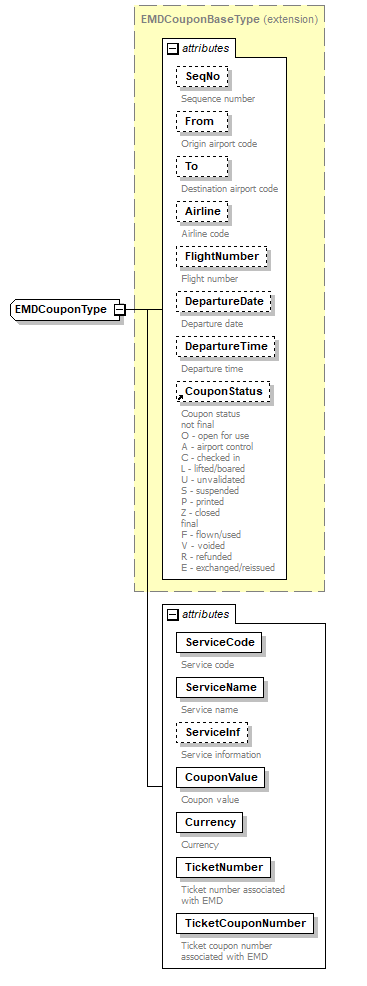

diagram
type	extension of EMDCouponBaseType
properties	base  EMDCouponBaseType
used by	element  FlightCouponsItnType/EMDCoupon
attributes	Name   Type   Use   Default   Fixed   Annotation SeqNo   s:int            documentation Sequence number From   s:string            documentation Origin airport code To   s:string            documentation Destination airport code Airline   s:string            documentation Airline code FlightNumber   s:string            documentation Flight number DepartureDate   s:date            documentation Departure date DepartureTime   s:time            documentation Departure time CouponStatus   derived by: s:string            documentation Coupon status not final O - open for use A - airport control C - checked in L - lifted/boared U - unvalidated S - suspended P - printed Z - closed final F - flown/used V - voided R - refunded E - exchanged/reissued ServiceCode   s:string   required         documentation Service code ServiceName   s:string   required         documentation Service name ServiceInf   s:string            documentation Service information CouponValue   s:decimal   required         documentation Coupon value Currency   s:string   required         documentation Currency TicketNumber   s:string   required         documentation Ticket number associated with EMD TicketCouponNumber   s:string   required         documentation Ticket coupon number associated with EMD
source	<s:complexType name="EMDCouponType">   <s:complexContent>     <s:extension base="EMDCouponBaseType">       <s:attribute name="ServiceCode" type="s:string" use="required">         <s:annotation>           <s:documentation>Service code</s:documentation>         </s:annotation>       </s:attribute>       <s:attribute name="ServiceName" type="s:string" use="required">         <s:annotation>           <s:documentation>Service name</s:documentation>         </s:annotation>       </s:attribute>       <s:attribute name="ServiceInf" type="s:string">         <s:annotation>           <s:documentation>Service information</s:documentation>         </s:annotation>       </s:attribute>       <s:attribute name="CouponValue" type="s:decimal" use="required">         <s:annotation>           <s:documentation>Coupon value</s:documentation>         </s:annotation>       </s:attribute>       <s:attribute name="Currency" type="s:string" use="required">         <s:annotation>           <s:documentation>Currency</s:documentation>         </s:annotation>       </s:attribute>       <s:attribute name="TicketNumber" type="s:string" use="required">         <s:annotation>           <s:documentation>Ticket number associated with EMD</s:documentation>         </s:annotation>       </s:attribute>       <s:attribute name="TicketCouponNumber" type="s:string" use="required">         <s:annotation>           <s:documentation>Ticket coupon number associated with EMD</s:documentation>         </s:annotation>       </s:attribute>     </s:extension>   </s:complexContent> </s:complexType>

attribute EMDCouponType/@ServiceCode

type	s:string
properties	use  required
annotation	documentation Service code
source	<s:attribute name="ServiceCode" type="s:string" use="required">   <s:annotation>     <s:documentation>Service code</s:documentation>   </s:annotation> </s:attribute>

attribute EMDCouponType/@ServiceName

type	s:string
properties	use  required
annotation	documentation Service name
source	<s:attribute name="ServiceName" type="s:string" use="required">   <s:annotation>     <s:documentation>Service name</s:documentation>   </s:annotation> </s:attribute>

attribute EMDCouponType/@ServiceInf

type	s:string
annotation	documentation Service information
source	<s:attribute name="ServiceInf" type="s:string">   <s:annotation>     <s:documentation>Service information</s:documentation>   </s:annotation> </s:attribute>

attribute EMDCouponType/@CouponValue

type	s:decimal
properties	use  required
annotation	documentation Coupon value
source	<s:attribute name="CouponValue" type="s:decimal" use="required">   <s:annotation>     <s:documentation>Coupon value</s:documentation>   </s:annotation> </s:attribute>

attribute EMDCouponType/@Currency

type	s:string
properties	use  required
annotation	documentation Currency
source	<s:attribute name="Currency" type="s:string" use="required">   <s:annotation>     <s:documentation>Currency</s:documentation>   </s:annotation> </s:attribute>

attribute EMDCouponType/@TicketNumber

type	s:string
properties	use  required
annotation	documentation Ticket number associated with EMD
source	<s:attribute name="TicketNumber" type="s:string" use="required">   <s:annotation>     <s:documentation>Ticket number associated with EMD</s:documentation>   </s:annotation> </s:attribute>

attribute EMDCouponType/@TicketCouponNumber

type	s:string
properties	use  required
annotation	documentation Ticket coupon number associated with EMD
source	<s:attribute name="TicketCouponNumber" type="s:string" use="required">   <s:annotation>     <s:documentation>Ticket coupon number associated with EMD</s:documentation>   </s:annotation> </s:attribute>
